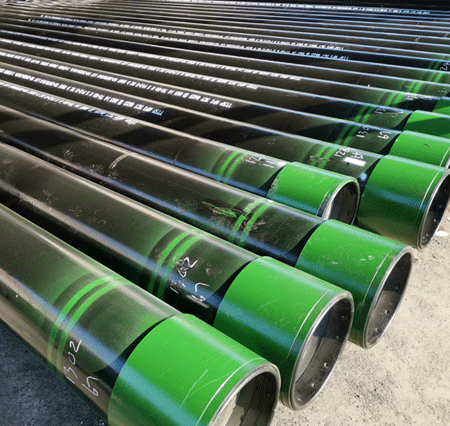

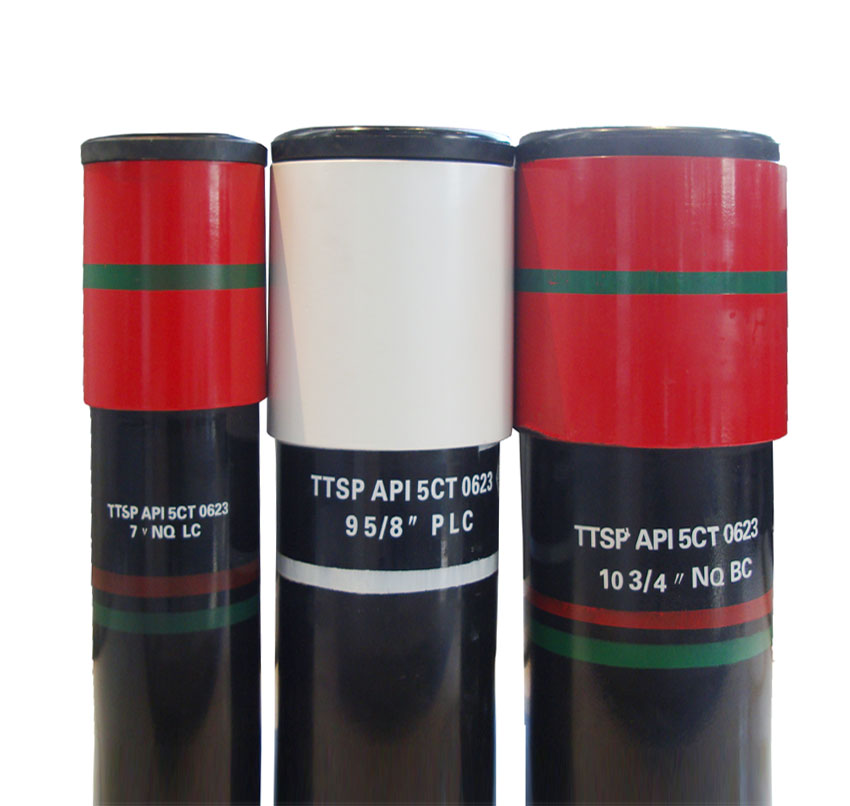

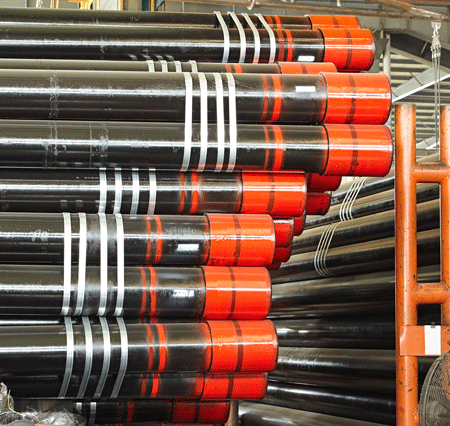

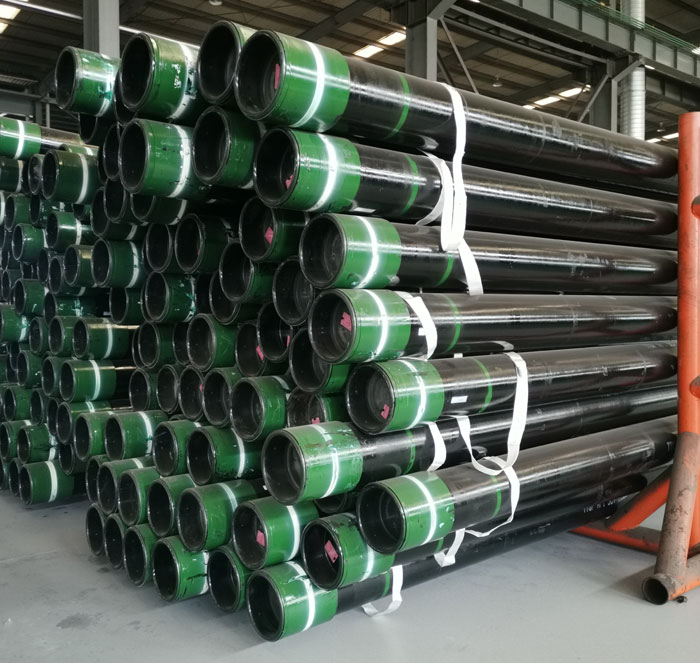

API標準套管
規格外徑
名義重量
鋼級
壁厚mm
螺紋類型
lb/f
&nbs
| 規格外徑 | 名義重量 | 鋼級 | 壁厚mm | 螺紋類型 | ||
| lb/f | short | long | buttress | |||
| 114.30(4 1/2") | 9.50 | H,J,K | 5.21 | ◆ | ||
| 10.50 | J,K | 5.69 | ◆ | ◆ | ||
| 11.60 | C,J,K,L,N,P,Q,R,T | 6.35 | ◆ | ◆ | ◆ | |
| 13.50 | C,L,R,N,P,Q,T | 7.37 | ◆ | ◆ | ||
| 15.10 | P,Q | 8.56 | ◆ | ◆ | ||
| 127.00(5") | 11.50 | J,K | 5.59 | ◆ | ||
| 13.00 | J,K | 6.43 | ◆ | ◆ | ◆ | |
| 15.00 | C,J,K,L,N,P,Q,R,T | 7.52 | ◆ | ◆ | ◆ | |
| 18.00 | C,L,N,P,Q,R,T | 9.19 | ◆ | ◆ | ||
| 21.40 | C,L,N,P,Q,R,T | 11.10 | ◆ | ◆ | ||
| 23.20 | C,L,N,P,Q,R,T | 12.14 | ◆ | ◆ | ||
| 24.10 | C,L,N,P,Q,R,T | 12.70 | ◆ | ◆ | ||
| 139.70(5 1/2") | 14.00 | H,J,K | 6.20 | ◆ | ||
| 15.50 | J,K | 6.98 | ◆ | ◆ | ◆ | |
| 17.00 | C,J,K,L,N,P,Q,R,T | 7.72 | ◆ | ◆ | ◆ | |
| 20.00 | C,L,R,N,P,Q,T | 9.17 | ◆ | ◆ | ||
| 23.00 | C,L,N,P,Q,R,T | 10.54 | ◆ | ◆ | ||
| 168.28(6 5/8") | 20.00 | H,J,K | 7.32 | ◆ | ◆ | ◆ |
| 24.00 | C,J,K,L,N,P,Q,R,T | 8.94 | ◆ | ◆ | ◆ | |
| 28.00 | C,L,R,N,P,Q,T | 10.59 | ◆ | ◆ | ||
| 32.00 | C,L,N,P,Q,R,T | 12.06 | ◆ | ◆ | ||
| 177.80(7") | 17.00 | H | 5.87 | ◆ | ||
| 20.00 | H,J,K | 6.91 | ◆ | |||
| 23.00 | C,J,K,L,N,Q,R,T | 8.05 | ◆ | ◆ | ◆ | |
| 26.00 | C,J,K,L,N,P,Q,R,T | 9.19 | ◆ | ◆ | ◆ | |
| 29.00 | C,L,R,N,P,Q,T | 10.36 | ◆ | ◆ | ||
| 32.00 | C,L,R,N,P,Q,T | 11.51 | ◆ | ◆ | ||
| 35.00 | C,L,N,P,Q,R,T | 12.65 | ◆ | ◆ | ||
| 38.00 | C,L,N,P,Q,R,T | 13.72 | ◆ | ◆ | ||
| 193.68(7 5/8") | 24.00 | H | 7.62 | ◆ | ||
| 26.40 | C,J,K,L,N,Q,R,T | 8.33 | ◆ | ◆ | ◆ | |
| 29.70 | C,L,R,N,P,Q,T | 9.52 | ◆ | ◆ | ||
| 33.70 | C,L,R,N,P,Q,T | 10.92 | ◆ | ◆ | ||
| 39.00 | C,L,N,P,Q,R,T | 12.70 | ◆ | ◆ | ||
| 42.80 | C,L,N,P,Q,R,T | 14.27 | ◆ | ◆ | ||
| 45.30 | C,L,N,P,Q,R,T | 15.11 | ◆ | ◆ | ||
| 47.10 | C,L,N,P,Q,R,T | 15.88 | ◆ | ◆ | ||
| 219.08(8 5/8") | 24.00 | J,K | 6.71 | ◆ | ||
| 28.00 | H | 7.72 | ◆ | |||
| 32.00 | H,J,K | 8.94 | ◆ | ◆ | ||
| 36.00 | C,J,K,L,N,Q,R,T | 10.16 | ◆ | ◆ | ◆ | |
| 40.00 | C,L,R,N,P,Q,T | 11.43 | ◆ | ◆ | ||
| 44.00 | C,L,R,N,P,Q,T | 12.70 | ◆ | ◆ | ||
| 49.00 | C,L,N,P,Q,R,T | 14.15 | ◆ | ◆ | ||
| 244.48(9 5/8") | 32.30 | H | 7.92 | ◆ | ||
| 36.00 | H,J,K | 8.94 | ◆ | ◆ | ◆ | |
| 40.00 | C,J,K,L,N,Q,R,T | 10.03 | ◆ | ◆ | ||
| 43.50 | C,L,R,N,P,Q,T | 11.05 | ◆ | ◆ | ||
| 47.00 | C,L,N,P,Q,R,T | 11.99 | ◆ | ◆ | ||
| 53.50 | C,L,N,P,Q,R,T | 13.84 | ◆ | ◆ | ||
| 273.45(11 3/4") | 32.75 | H | 7.09 | ◆ | ||
| 40.50 | H,J,K | 8.89 | ◆ | ◆ | ||
| 45.50 | J,K | 10.16 | ◆ | ◆ | ||
| 51.00 | C,J,K,L,N,P,Q,R,T | 11.43 | ◆ | ◆ | ||
| 55.50 | C,L,R,N,P,Q,T | 12.57 | ◆ | ◆ | ||
| 60.70 | C,T,P,Q | 13.84 | ◆ | ◆ | ||
| 65.70 | C,T,P,Q | 15.11 | ◆ | ◆ | ||
| 298.45(11 3/4") | 42.00 | H | 8.46 | ◆ | ||
| 47.00 | J,K | 9.53 | ◆ | ◆ | ||
| 54.00 | J,K | 11.05 | ◆ | ◆ | ||
| 60.00 | C,J,K,L,N,P,Q,R,T | 12.42 | ◆ | ◆ | ||
| 339.7(13 3/8") | 48.00 | H | 8.38 | ◆ | ||
| 54.50 | J,K | 9.65 | ◆ | ◆ | ||
| 61.00 | J,K | 10.92 | ◆ | ◆ | ||
| 68.00 | C,J,K,L,N,P,Q,R,T | 12.19 | ◆ | ◆ | ||
| 72.00 | C,J,K,L,N,P,Q,R,T | 13.06 | ◆ | ◆ | ||
| 406.40(16") | 65.00 | H | 9.53 | ◆ | ◆ | |
| 75.00 | J,K | 11.13 | ◆ | ◆ | ||
| 84.00 | J,K | 12.57 | ◆ | ◆ | ||
| 437.08(18 5/8") | 87.50 | H,J,K | 11.05 | ◆ | ◆ | ◆ |
| 508.00(20") | 94.00 | H,J,K | 11.13 | ◆ | ◆ | ◆ |
| 106.50 | J,K | 12.70 | ◆ | ◆ | ◆ | |
| 133.00 | J,K | 16.13 | ◆ | ◆ | ◆ | |
